Faster Siamese Network Training and Inference

In this post, I look at a couple of ways you can dramatically speed up training of Siamese neural networks. These are two relatively simple tricks that I’ve not seen anywhere else which, when combined, can give a ~2.5x speed-up when training Siamese networks on GPU in PyTorch.

Siamese Networks, Very Briefly

Siamese neural networks are machine learning models designed to evaluate how similar two inputs are, usually in order to determine if they are of the same class.

They work by having two identical subnetworks, which share the same architecture and weights, processing the two inputs to construct two independent feature vectors, which are then compared, either with an explicitly computed distance metric (such as Euclidean distance) or by concatenating the two vectors and feeding them into the next stage of the network to compute a non-linear similarity measure.

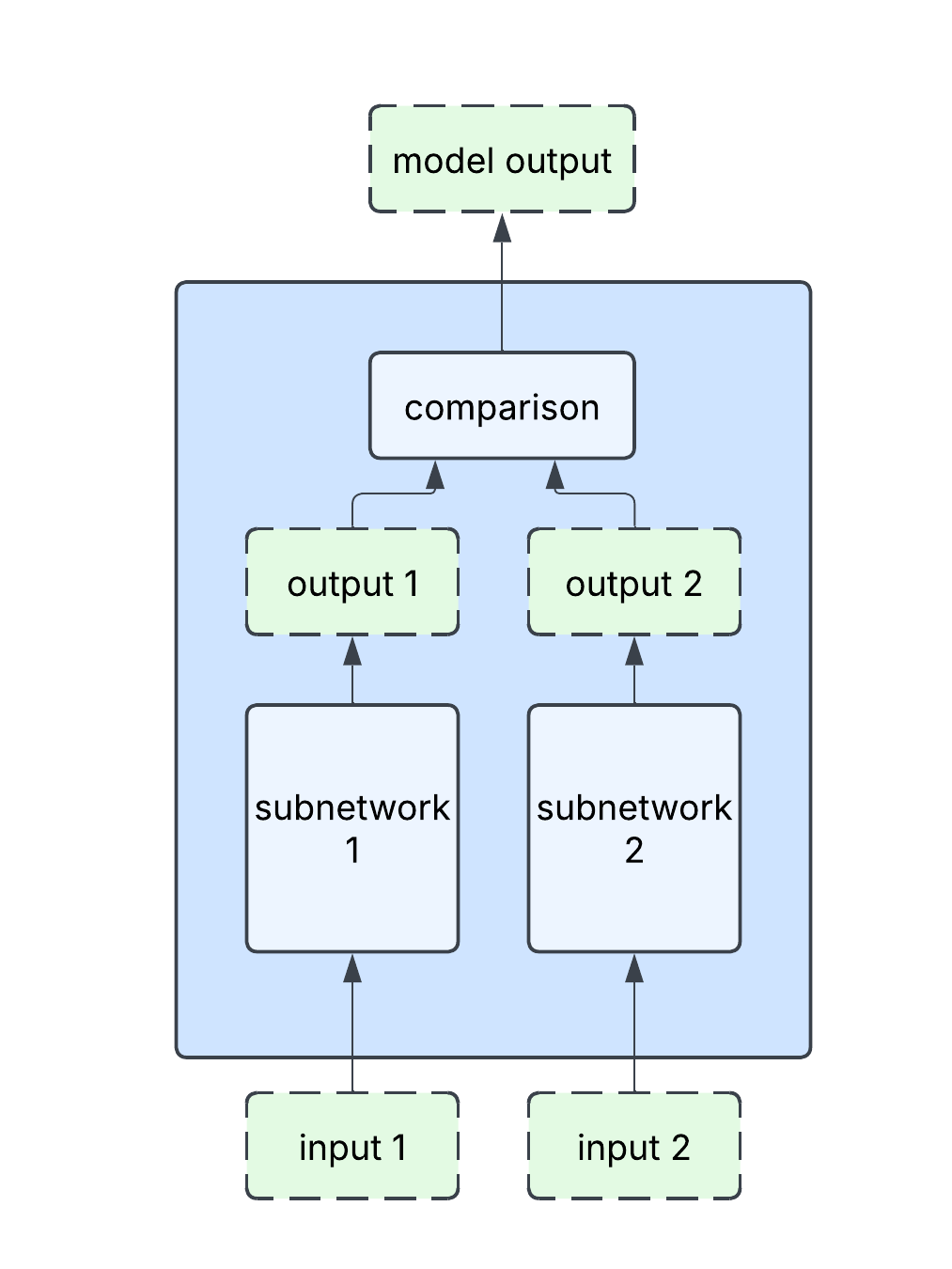

The following diagram gives the general structure of these networks:

Internally, the two inputs are processed in parallel by the two identical subnetworks, producing intermediate representations that are compared in a separate part of the network to produce a model output.

This kind of network is especially useful if you know the category of objects that you want to classify but not all the members of that category. For example, if you’re training a model for facial recognition, you may not know in advance all the faces you wish to identify, even if you know that the task you want to perform is identifying specific people.

By training the network to categorise pairs of images as “same” or “different”, if you later want to identify a person who is not in your training set, you can start running facial recognition to identify that person with a single reference image.

Optimisation 1: Reducing Subnetwork Calls

The first trick for speeding up Siamese neural networks is applicable for both training and inference, and can be summarised succinctly as: concatenate your inputs and feed them in together rather than calling the model twice.

A typical Siamese network implemented in PyTorch might follow a template such as this:¹

class SiameseNetwork(nn.Module):
    """Initialise the network and subnetwork"""
    def __init__(self, *args):
        super(SiameseNetwork, self).__init__()
        ...

    def forward_once(self, x):
        """Forward pass for one input"""
        ...
        return output

    def forward(self, input1, input2):
        """Forward pass for a pair of inputs"""
        output1 = self.forward_once(input1)
        output2 = self.forward_once(input2)
        return output1, output2

While Siamese networks are described as having two identical networks, this is not how they are implemented. The actual implementation is just a single network that is passed both inputs to process in sequence.

But since it is just the same network being called twice, we can make the implementation more efficient simply by concatenating the inputs in the batch dimension, calling the network once then undoing the concatenation on the outputs. With such an approach, the forward method would look as follows:

    def forward(self, input1, input2):
        """Forward pass for a pair of inputs"""

        """Stack the inputs, doubling the batch size"""
        stacked_input = torch.cat([input1, input2], 0)
        output = self.forward_once(stacked_input)

        # Split the output back into two embeddings
        output1, output2 = torch.chunk(output, chunks=2, dims=0)

        return output1, output2

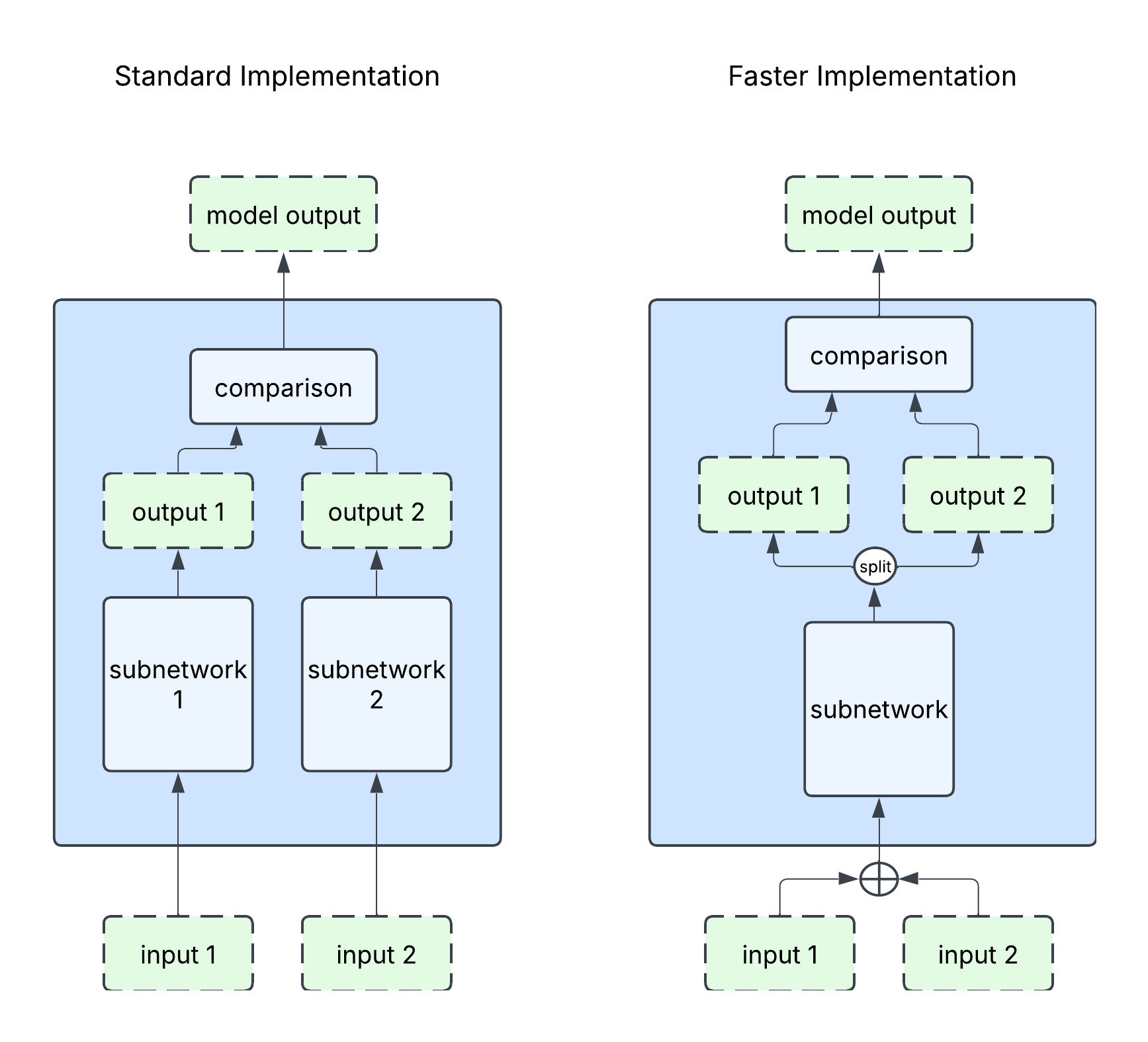

These two different implementation strategies are visualised in the following diagram:

The second approach should be more efficient, since it allows the network to make full use of the GPU’s parallelism. To test this idea, we consider a Siamese network based on the one found in the PyTorch examples. This network uses a ResNet18 as the base model for its subnetwork, removing the last layer and concatenating the features from both outputs to be fed into an MLP with a single layer to produce an overall output. For our experiments, we use CIFAR100 as our dataset. All experiments can be found at this link.

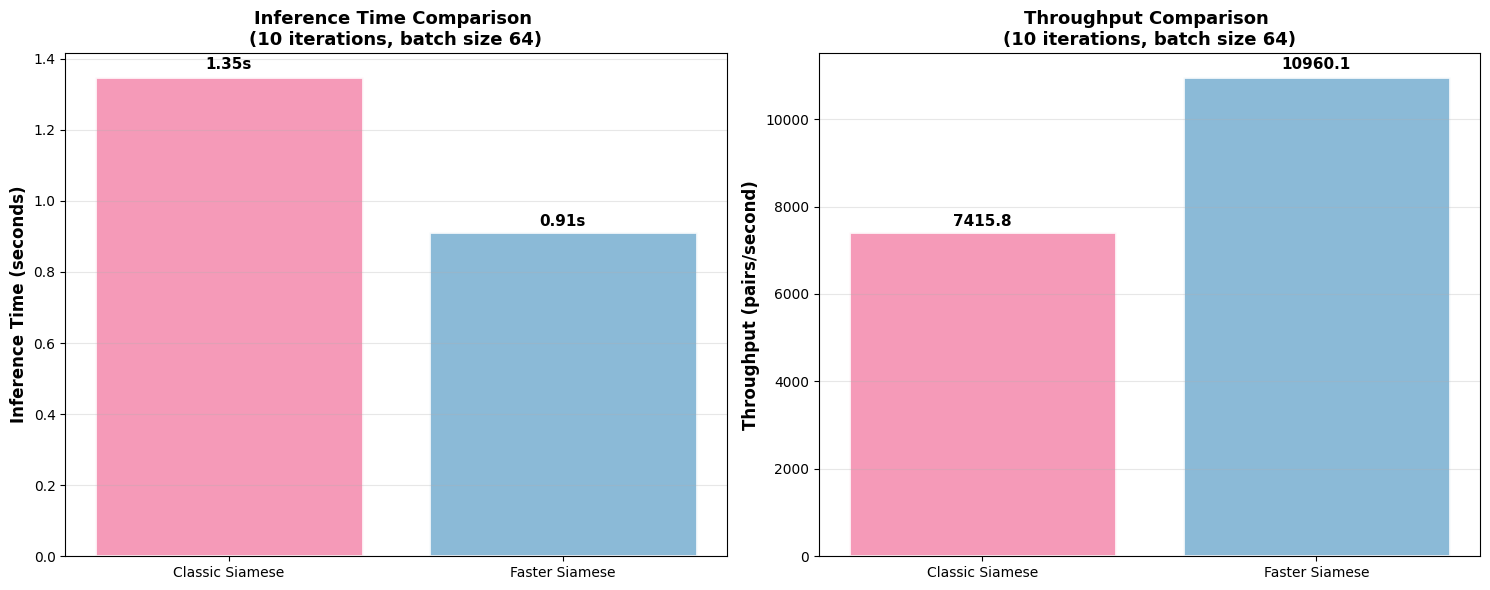

We test the time it takes to perform inference on a randomly initialised network, recording the amount of time taken to perform inference on 10 passes through the dataset, performing inference on a total of 100,000 image pairs, reporting the results in the figure below.

From this test, we can see that this one change alone allows us a 33% saving in the time cost of running the network.

So why isn’t this standard practice? In researching this post, I couldn’t find any Siamese networks that are implemented this way!

It seems likely to me the reason is just that Siamese neural networks are described as consisting of two identical subnetworks (and even the name implies it) rather than being described as a single network acting on two inputs. Even though these two descriptions are equivalent, when implementing a network with this mental model in mind, it feels more natural to think of inputs passing through the networks as two different function calls.

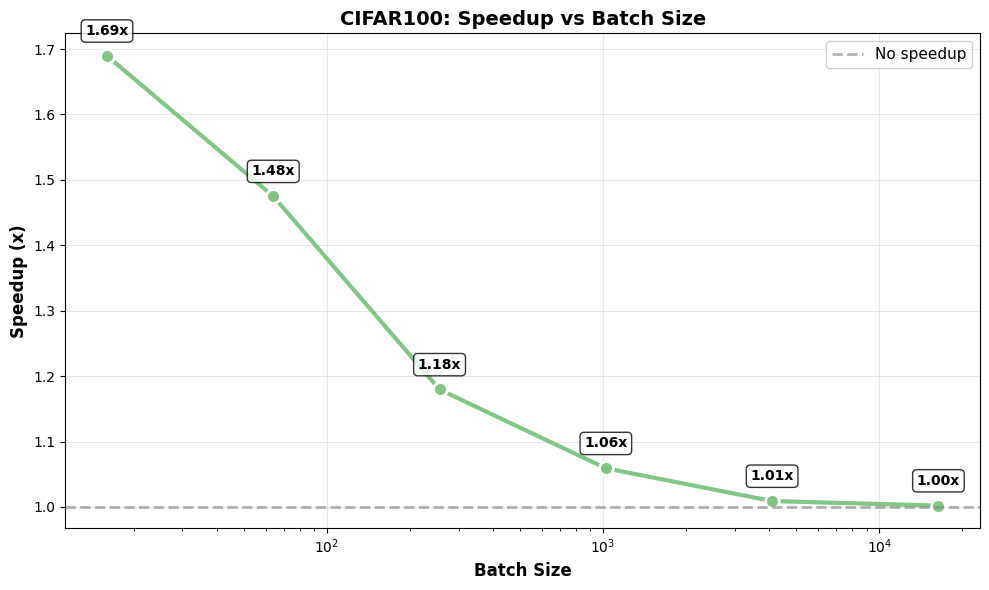

One important caveat for this new approach is that though the speed-up persists at all batch sizes, it is most dramatic for small batches.

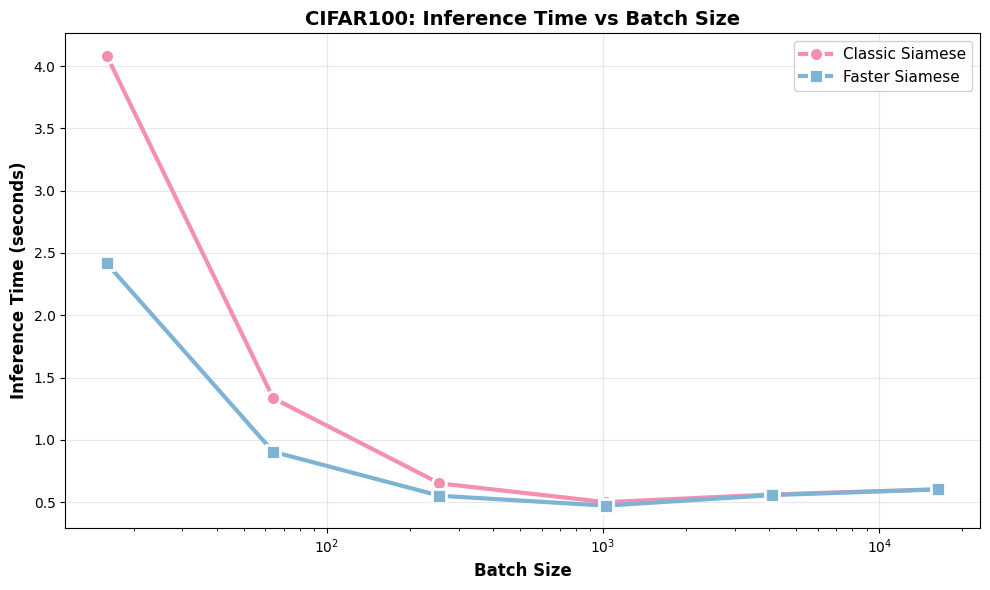

Running the same test for batch sizes ranging from 16 to 16,384, quadrupling each time, we see that as batch size increases, the effect of this strategy decreases.

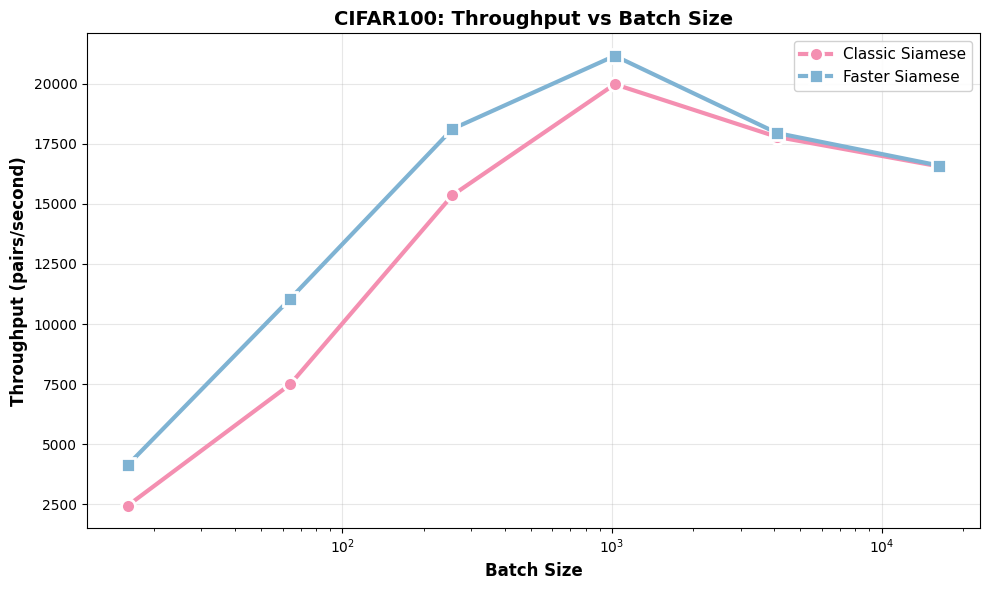

However, we can also see that for larger batch sizes, the inference speed of the network drops for both implementations, and most importantly, we see that at the batch size that allows maximum throughput, there is still a small but significant speed up of 6% using the faster method.

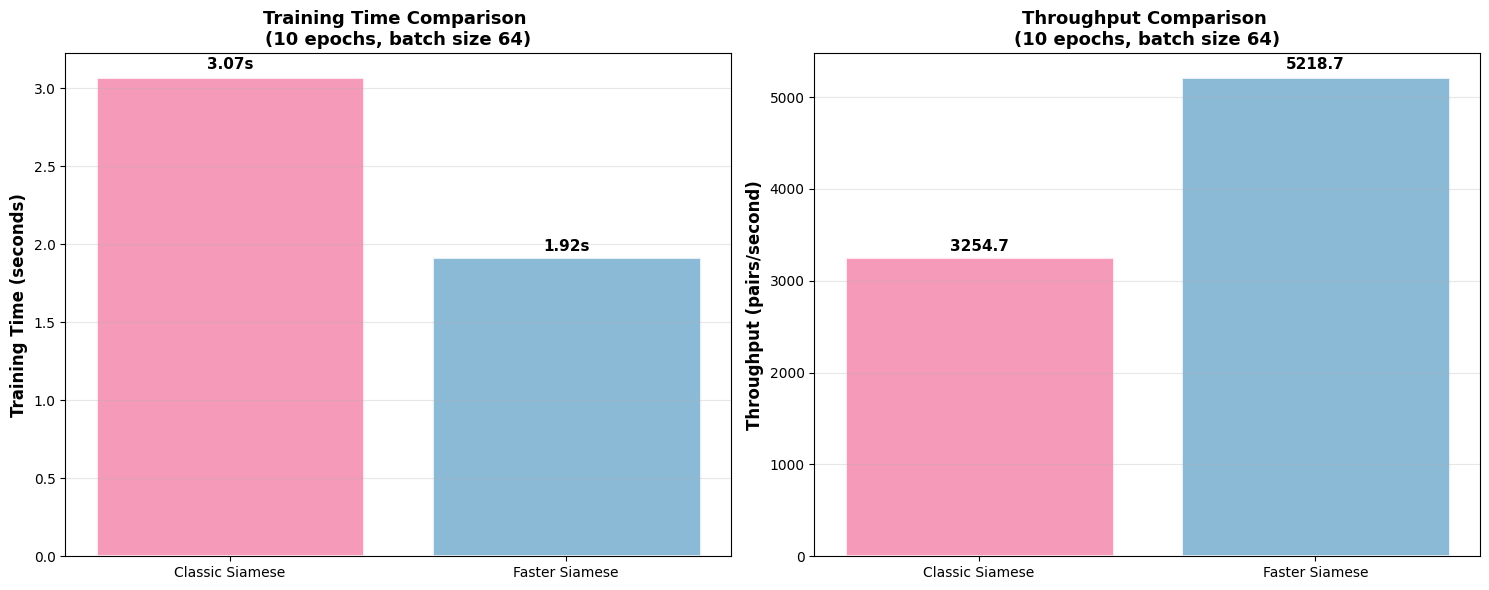

To measure the effect of using this new method on training, we perform a similar experiment but this time simulate training. Whilst iterating through the data, we compare the model’s prediction to the target using the binary cross-entropy loss, back-propagate through the network and update the weights using an Adam optimiser.

Here, we see a speed-up of 37.5%, suggesting that this optimisation affects not just the forward pass through the model but also offers a benefit of similar magnitude during the backward pass during training.

Optimisation 2: Data Efficient Training

For the second optimisation, we examine how training data can be used more effectively.

When training Siamese networks, it is desirable to balance example pairs which are of the same class and example pairs that of different classes. A common strategy for doing this is to shuffle your training examples, then iterate through them; while iterating through, you alternate between randomly selecting a sample from the same class (creating a positive pair) and from a different class (creating a negative pair).

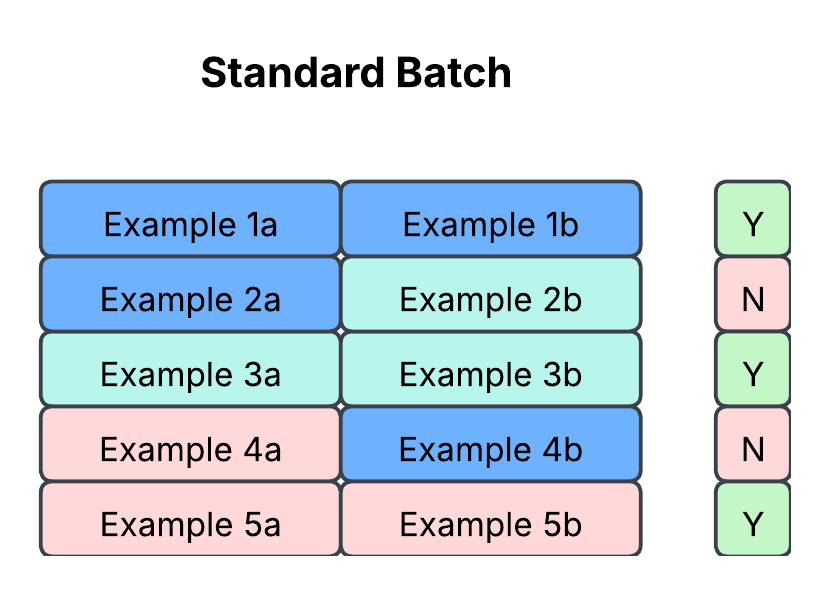

Using such a method will give you batches that look like the following:

However, this process is not very efficient. On average, an example will appear twice in an epoch: it’s guaranteed to be drawn once as the first element of the pair, and on average will also be drawn once as the second element. In doing so, it will be passed through the subnetwork twice, constructing a representation for that input each time.

To make this process more efficient, we design training so that whenever a generated a representation for an input is generated by the network, it is by default used twice within the same batch.

To do this, we generate only positive example pairs, making sure that no two consecutive pairs in a batch have the same class but are otherwise randomly ordered. After generating the representations for the entire batch, we can use the pairs as positive examples, then shift the indices of the second example by one to generate the negative examples. This can be visualised like so:

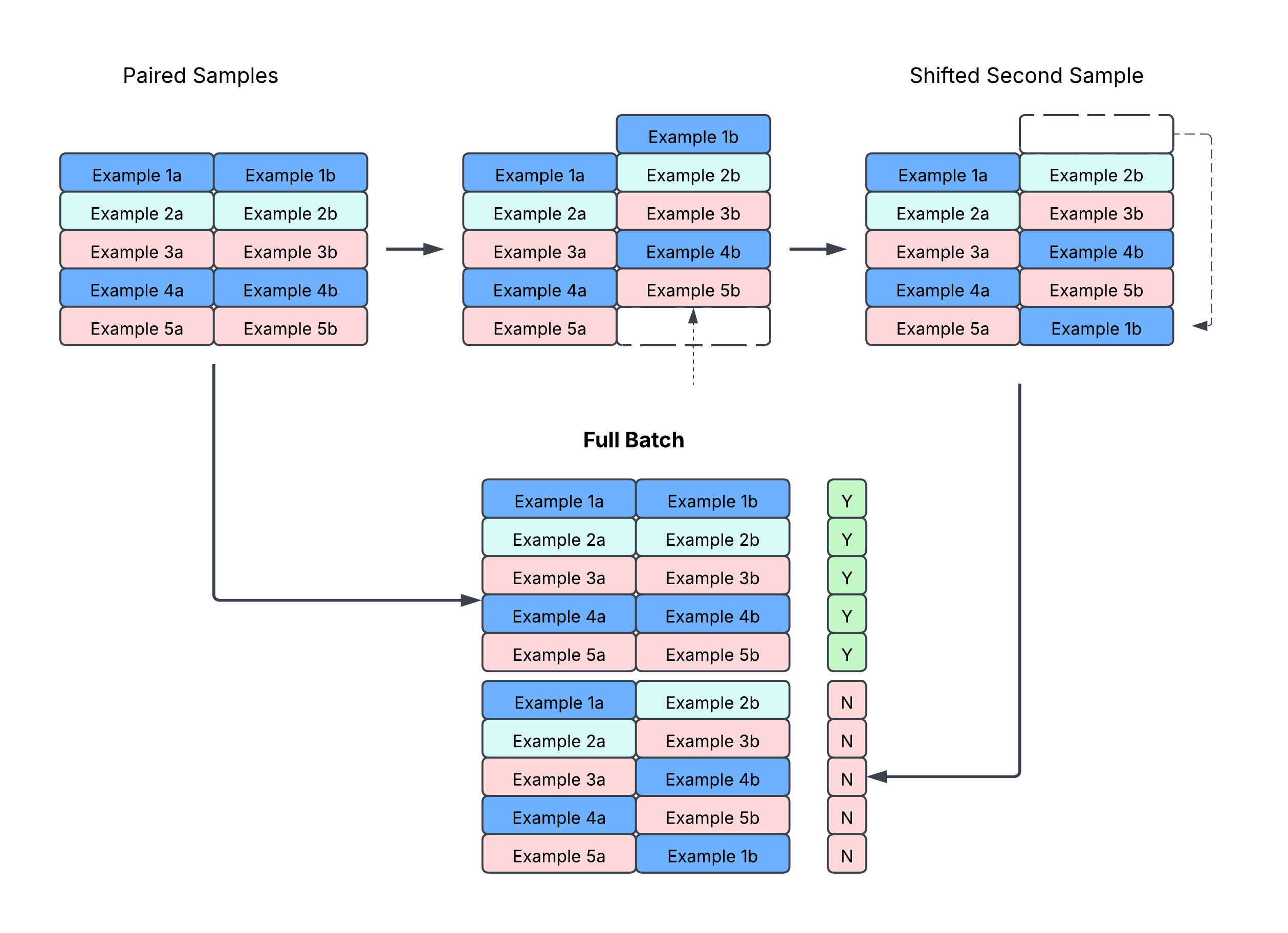

In short, we evaluate all pairs on the positive samples, then roll the outputs (not the inputs) to create the negatively labelled pairs.

Given a dataloader which generates pairs such that no two consecutive pairs in a batch are of the same class (including the first pair and last pair), a training epoch for this method would look something like the following:

for batch_idx, (images_1, images_2) in enumerate(train_loader):

    # Load in pairs of similar images
    # images_1 and images_2 are both of shape (batch_size, ...)
    images_1, images_2 = images_1.to(device), images_2.to(device)
    optimizer.zero_grad()

    # First examples: assume same class (positive pairs)
    same_class_targets = torch.ones(len(images_1)).to(device)

    # Collect model outputs
    output1, output2 = model(images_1, images_2)
    outputs_same = torch.cat((output1, output2), dim=1)

    # Second examples: roll second image tensor and assume different classes (negative pairs)
    different_class_targets = torch.zeros(len(images_1)).to(device)
    outputs_different = torch.cat((output2, torch.roll(output1, shifts=-1, dims=0)), dim=1).to(device)

    predictions = model.get_prediction_from_embeddings(torch.cat((outputs_same
                                                                 outputs_different)).squeeze()

    targets = torch.cat((same_class_targets, different_class_targets))

    total_loss = criterion(predictions, targets)
    total_loss.backward()
    optimizer.step()

Here, we see how even though the images only pass through model once, the outputs they generate are combined in two different ways to generate two distinct predictions.

In order to compare this new method to the classic method of training, we first need to decide what constitutes an epoch for this new training method. For the classic training, we iterate through example images so that every image in the training set is the first image in a pair exactly once. However, using our new method, each image appears as the first of an example pair twice (and therefore on average four times per epoch in total).

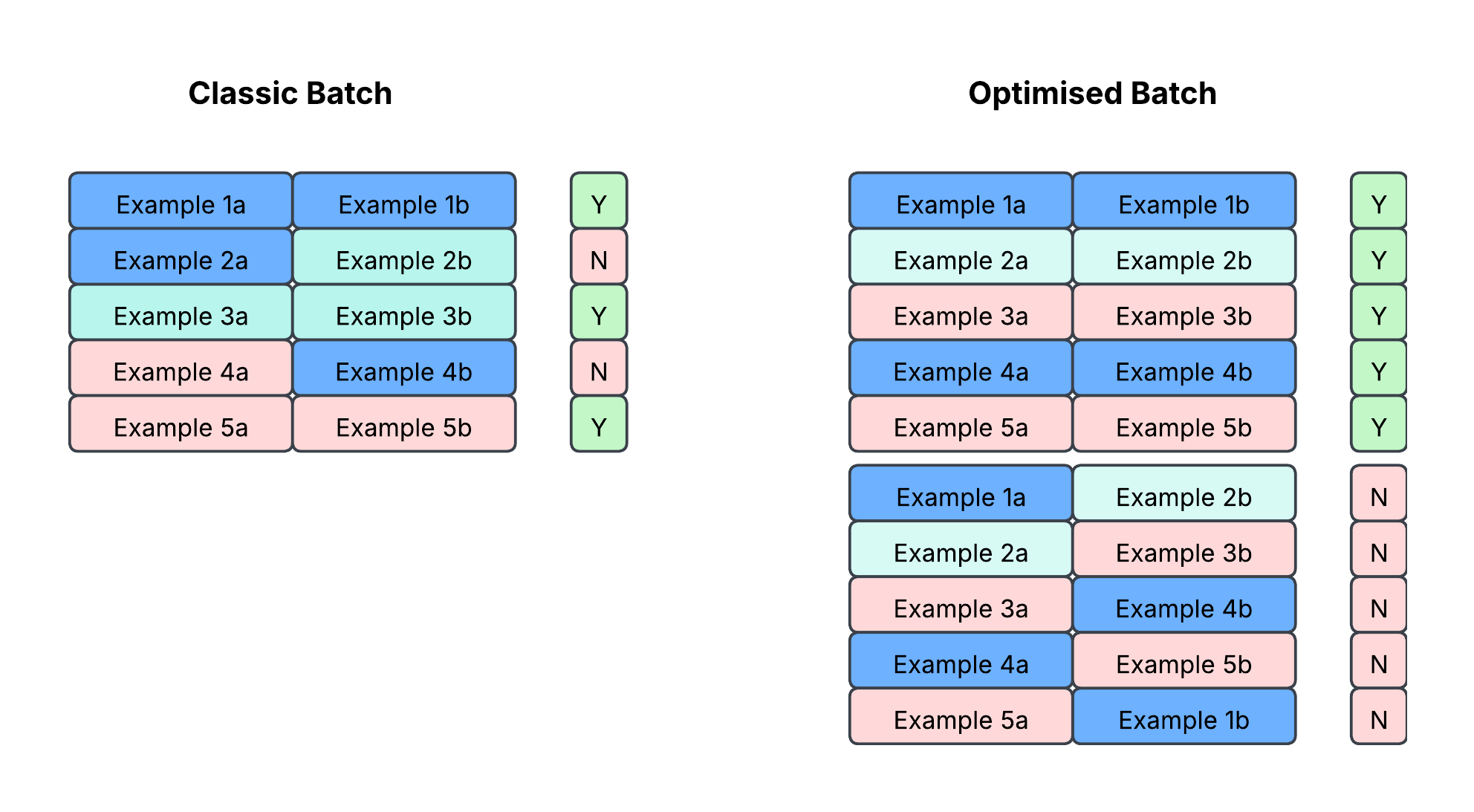

This means that, in essence, batches and epochs using our new approach contain twice as many examples:

In order to do fair comparisons, for faster training, we will test both “full” epoch training, which calculates twice as many losses as the classic algorithm, and “half” epoch training, where we stop the epoch after we reach the same number samples that the classic algorithm stops at. In practice, the “full” method is probably preferable, with the “half” method being useful here only for providing a like-for-like comparison.²

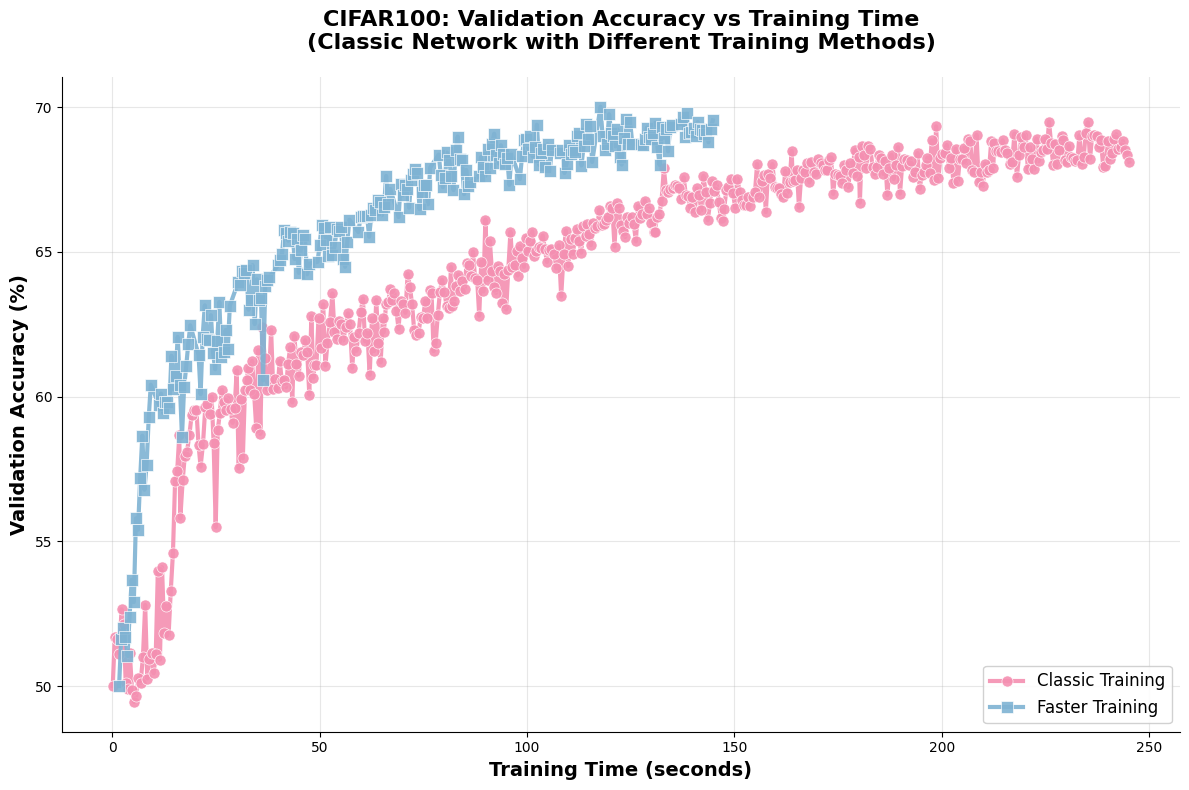

First we look at the validation loss over time for 15 epochs of training using the “half” approach:

Here, we see that the faster method offers a signficant speed-up over the classic method, taking less time overall whilst still reaching the same level of accuracy on unseen data.

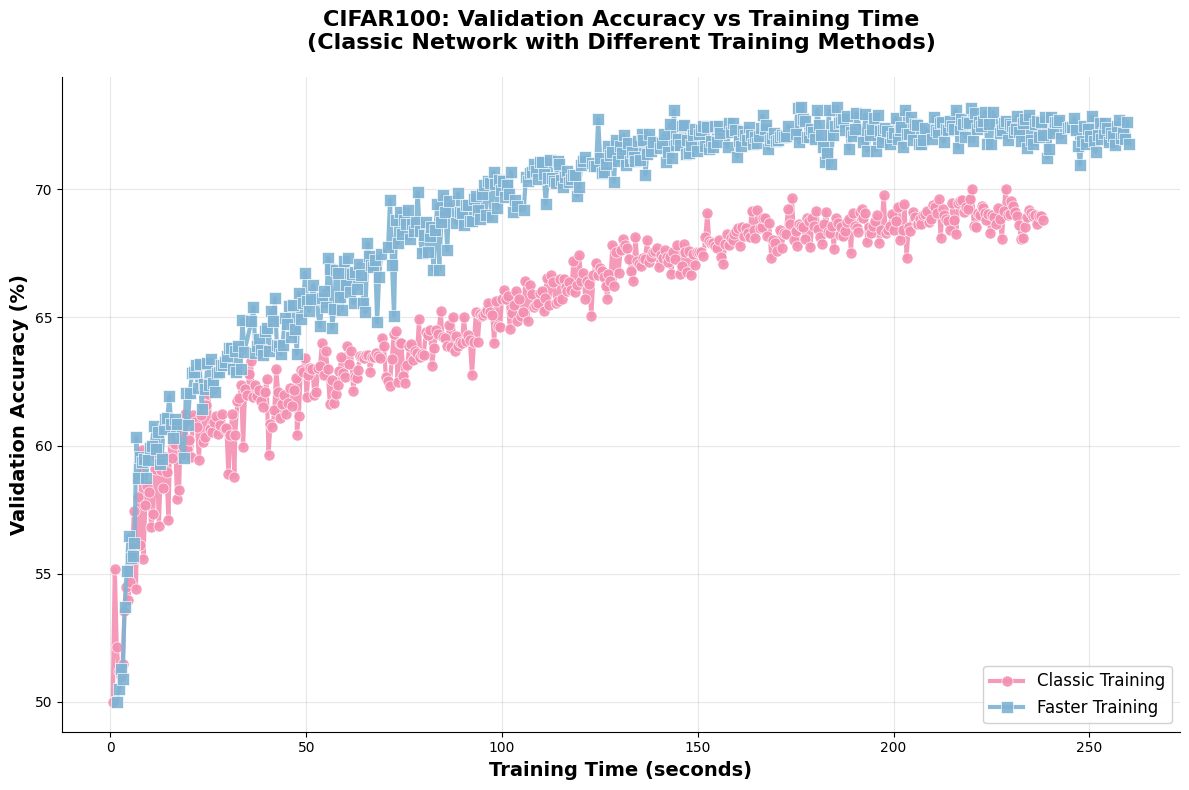

Next, we compare against the “full” method:

Here, we see that using full batches, though training takes longer overall, for the same number of epochs, the rate of improvement is much faster, meaning that the time that would be needed in order to reach convergence would be less. It also appears that the performance of the network is improved by the faster training regime. Further investigation is required to establish exactly what about this alternate training strategy improves performance in this case.³

Applying Both Optimisations

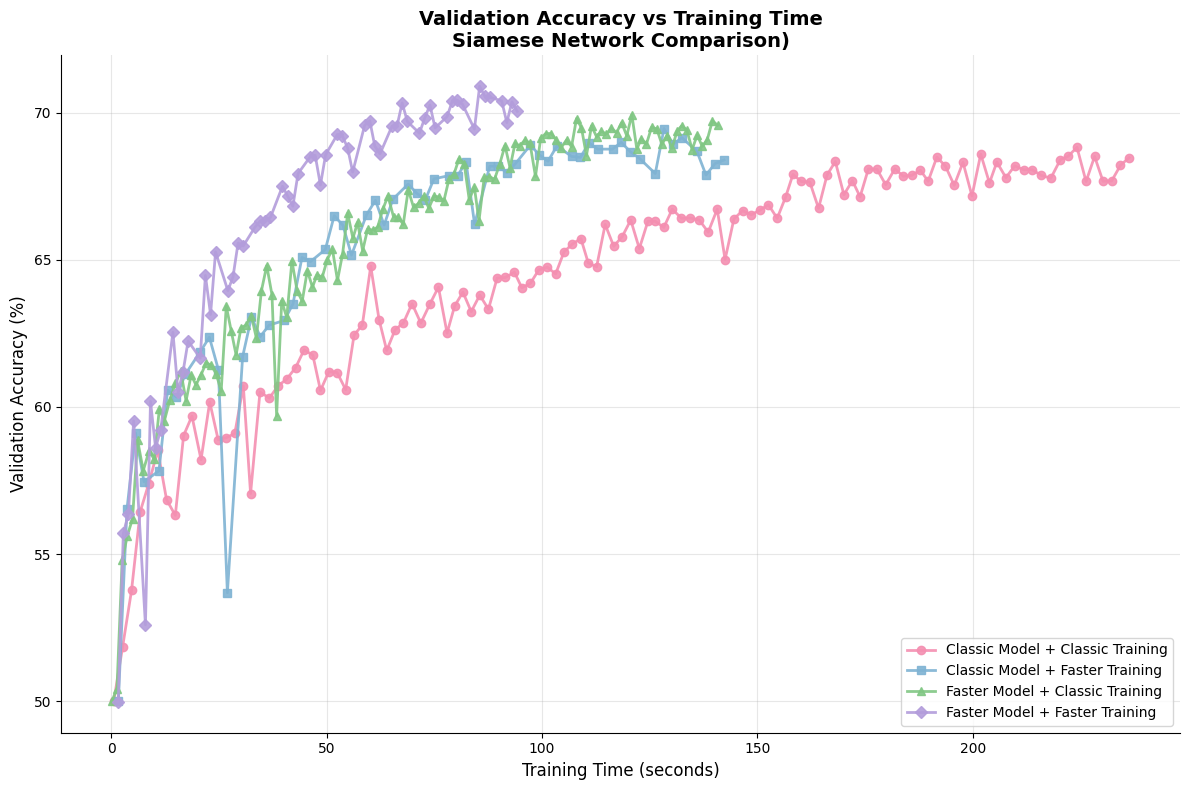

Finally, we look at the effect of using both optimisations at the same time. Training a networks using all four combinations of classic/faster training and classic/faster model, we can see the importance of both our optimisations for speeding up the model.

We train both classic and faster models with the classic and faster training methods, in both cases using 50,000 samples per epoch, for 15 epochs each.

Here, we see that when combined, these two tricks give a dramatic speed-up, with training time going from 236.3 seconds using the original implementation to 94.3 seconds with both the faster model and faster training method. This is accomplished with no drop in classification accuracy (in fact, there is a slight improvement from 68.47% to 70.04%).

We also see how both the faster model and faster training contribute about equally to the speed-up, with the faster training method’s contribution being slightly larger. The training time is 142.3 seconds and 140.8 seconds for faster training only and faster model only, respectively. The equivalence here may be due to the fact that in isolation they serve the same role: to halve the number of subnetwork calls for every example seen by the loss function.

What’s Next?

The two optimisations presented here offer significant speedup to Siamese network training, and when combined reduce the training time to just 40% of the original training time. Though the faster training method modifies the training algorithm, it does so in a way where the effects on performance range from negligible to even being positive in some cases.

Further optimisations may be possible in the training algorithm, if multiple examples pairs from the same class are present in a batch, then the representations could be used more than twice, but with some potential difficulties in ensuring that the matching vs non-matching pairs appear with similar frequencies.

An obvious extension to the training approach would be to apply the same method to the triplet loss. This could again work by arranging the training batches in matching pairs and having each inputs representation successively as a positive example, negative example and anchor, though experiments would have to be done to ensure that this does not affect performance.

Thanks to D. Lowl, Sara Summerton and Matt Squire for their feedback on earlier drafts of this post
